Blank LADBS NEC Standard Electrical Load Calculation PDF Form

The LADBS NEC Standard Electrical Load Calculation form is a crucial document used to determine the electrical load requirements for residential and commercial properties in compliance with safety standards. This form ensures that electrical systems are designed to handle the anticipated load, promoting safety and efficiency. For those needing to complete this form, please click the button below to get started.

Edit Document
Jump Links

The LADBS NEC Standard Electrical Load Calculation form is an essential tool for anyone involved in electrical installations and modifications in Los Angeles. This form is designed to ensure that electrical systems are safe, efficient, and compliant with local regulations. It guides users through the process of calculating the expected electrical load for a building or renovation project, taking into account various factors such as lighting, appliances, and HVAC systems. By using this form, professionals can accurately assess the power requirements needed to support the intended use of the space. Additionally, it serves as a vital document for obtaining permits and passing inspections, ensuring that all electrical work meets the standards set forth by the National Electrical Code (NEC). Understanding how to complete this form correctly can save time and prevent costly mistakes, making it a crucial step in any electrical project. Whether you are a contractor, an architect, or a homeowner, familiarity with this form can enhance your ability to manage electrical requirements effectively.

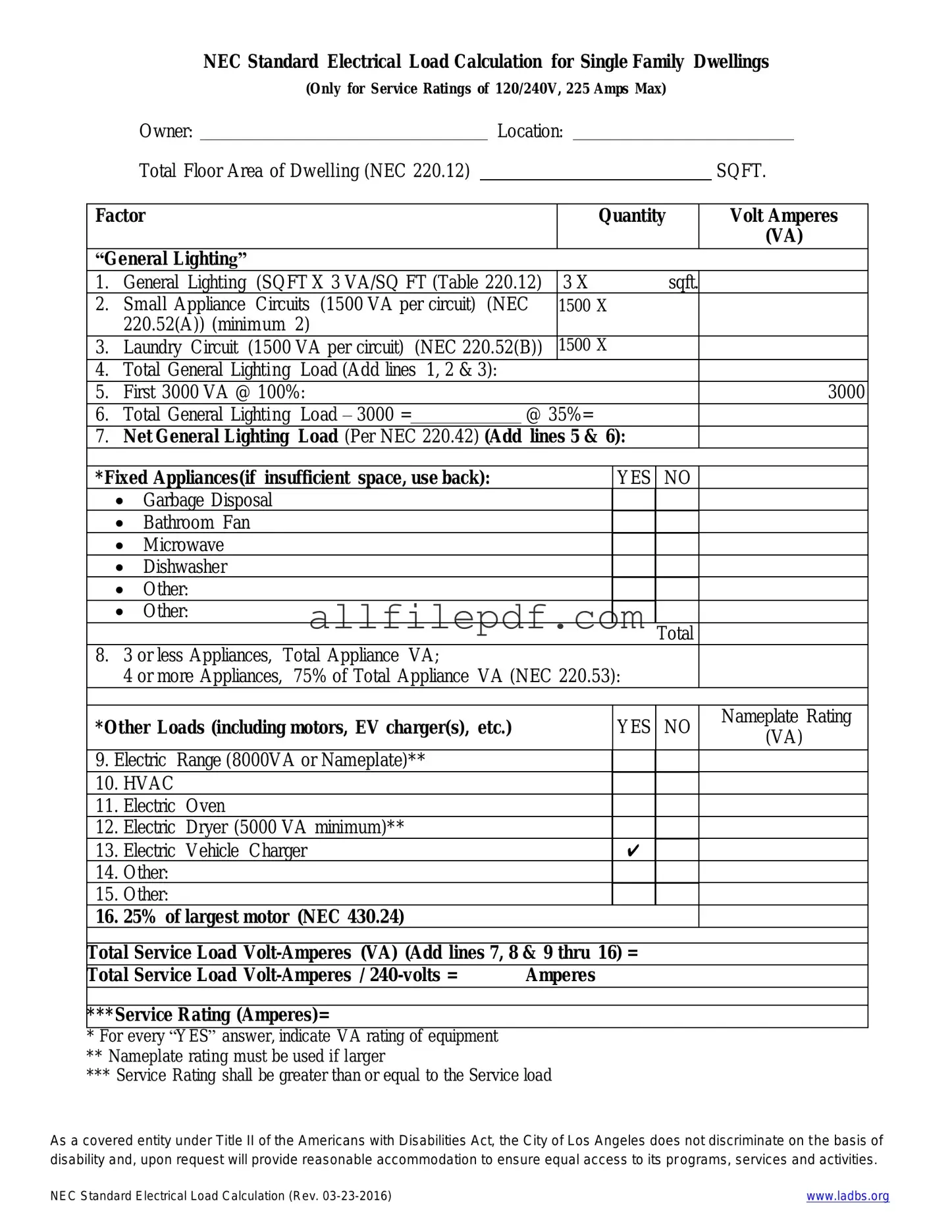

Sample - LADBS NEC Standard Electrical Load Calculation Form

NEC Standard Electrical Load Calculation for Single Family Dwellings

(Only for Service Ratings of 120/240V, 225 Amps Max)





Owner:









Location:















Total Floor Area of Dwelling (NEC 220.12)



















SQFT.































Factor

















Quantity





Volt Amperes

































(VA)





























“General Lighting”



























1.

General Lighting (SQFT X 3 VA/SQ FT (Table 220.12)

3 X

sqft.







2.

Small Appliance Circuits (1500 VA per circuit)

(NEC

1500 X











220.52(A)) (minimum 2)























3.

Laundry Circuit (1500 VA per circuit) (NEC 220.52(B))

1500 X









4.

Total General Lighting Load (Add lines 1, 2 & 3):

















5.

First 3000 VA @ 100%:



















3000

6.

Total General Lighting Load – 3000 =





@ 35%=





























7.

Net General Lighting Load (Per NEC 220.42) (Add lines 5 & 6):

























*Fixed Appliances(if insufficient space, use back):





YES

NO







Garbage Disposal



























Bathroom Fan



























Microwave



























Dishwasher



























Other:



























Other:





















































Total







8.

3 or less Appliances,

Total Appliance VA;

























4 or more Appliances,

75% of Total Appliance VA (NEC 220.53):











































*Other Loads (including motors, EV charger(s), etc.)





YES

NO



Nameplate Rating







(VA)



























































9. Electric

Range (8000VA or Nameplate)**























10. HVAC































11.

Electric

Oven



























12.

Electric

Dryer (5000 VA minimum)**























13.

Electric

Vehicle Charger











✔











14.

Other:































15.

Other:































16.

25% of largest motor (NEC 430.24)

































Total Service Load Volt-Amperes (VA) (Add lines 7, 8 & 9 thru 16) =









Total Service Load Volt-Amperes / 240-volts =





Amperes









***Service Rating (Amperes)=

*For every “YES” answer, indicate VA rating of equipment

**Nameplate rating must be used if larger

***Service Rating shall be greater than or equal to the Service load

As a covered entity under Title II of the Americans with Disabilities Act, the City of Los Angeles does not discriminate on t he basis of disability and, upon request will provide reasonable accommodation to ensure equal access to its programs, services and activities.

NEC Standard Electrical Load Calculation (Rev. 03-23-2016)

www.ladbs.org

Document Breakdown

Fact Name Description
Purpose The LADBS NEC Standard Electrical Load Calculation form is used to determine the electrical load requirements for new and existing buildings in compliance with the National Electrical Code (NEC).
Required Information This form requires information about the type of occupancy, the square footage of the building, and the intended electrical appliances and systems.
Governing Laws The form adheres to the California Electrical Code, which is based on the NEC, along with local amendments specific to the City of Los Angeles.
Submission Completed forms must be submitted to the Los Angeles Department of Building and Safety (LADBS) as part of the permit application process for electrical work.

Check out Other Forms

Form 14653 Pdf - This form accommodates individual circumstances and seeks to provide fair treatment for those rectifying tax mistakes.

To ensure that your financial affairs are managed according to your wishes, it's important to understand the Durable Power of Attorney and its implications. For detailed insights, consider our guide on the "necessary aspects of Durable Power of Attorney" available at https://nydocuments.com/durable-power-of-attorney-form/.

Asurion Phone - The form is essential for those seeking reimbursement or repair services.

Misconceptions

Understanding the LADBS NEC Standard Electrical Load Calculation form is essential for anyone involved in electrical planning or construction. However, several misconceptions can lead to confusion. Here are eight common misunderstandings:

  1. It is only for commercial buildings. Many believe this form applies solely to commercial properties. In reality, it is also necessary for residential buildings, ensuring safety and compliance.
  2. Only licensed electricians can fill it out. While licensed professionals often handle these calculations, homeowners and contractors can also complete the form, provided they understand the requirements.
  3. It only considers lighting loads. Some think the form focuses solely on lighting. However, it encompasses all electrical loads, including appliances, HVAC systems, and more.
  4. Filling it out is optional. Many assume that using the form is not mandatory. In fact, it is often required for obtaining permits and ensuring safety standards are met.
  5. It’s a one-time requirement. Some believe that once the form is submitted, it never needs to be revisited. Load calculations should be updated whenever there are significant changes to the electrical system.
  6. It guarantees approval. Submitting the form does not automatically ensure approval. Compliance with all local codes and regulations is necessary for the project to proceed.
  7. All jurisdictions use the same form. Some assume that the LADBS form is standard across all areas. In reality, different jurisdictions may have their own requirements and forms.
  8. It is too complicated to understand. Many people think the form is overly complex. While it requires attention to detail, with the right guidance, anyone can learn to complete it accurately.

Addressing these misconceptions can help streamline the process and ensure compliance with electrical standards. Clarity on these points is crucial for successful project completion.

Documents used along the form

The LADBS NEC Standard Electrical Load Calculation form is an essential document for assessing electrical loads in buildings. However, several other forms and documents often accompany it to ensure a comprehensive review and compliance with local regulations. Below are some of these key documents, each playing a vital role in the overall electrical planning process.

  • Electrical Plans: These detailed diagrams illustrate the layout of electrical systems within a building. They include information on wiring, circuit placement, and the location of electrical panels, helping inspectors and contractors visualize the entire electrical setup.
  • Commercial Lease Agreement: This form is essential for establishing the terms of renting commercial property in Florida. For more details, visit Florida PDF Forms.
  • Service Entrance Load Calculation: This document outlines the anticipated electrical load at the point where the electrical service enters a building. It helps determine the size of the service entrance equipment needed to safely handle the expected demand.
  • Panel Schedule: A panel schedule lists all circuits connected to a specific electrical panel. It details the load for each circuit, ensuring that the total load does not exceed the panel's capacity, which is crucial for safety and compliance.
  • Permits and Applications: Before beginning any electrical work, various permits may be required. These documents provide the necessary approvals from local authorities, ensuring that the planned work meets all safety and regulatory standards.

In summary, while the LADBS NEC Standard Electrical Load Calculation form is a critical component of electrical planning, these additional documents enhance the overall process. Together, they ensure safety, compliance, and efficiency in electrical installations.
